Wake On Lan

The ability to wake a machine up over the network is really nice.  This feature is referred to as wake on lan (WOL).  Most modern hardware supports this, and many operating systems have it nicely integrated (Mac OSX for one) – under Linux it required a bit more magic.  This post is specific to Ubuntu 9.10, however it probably applies to other versions and variants.

Primarily I was looking to wake up from suspended state as I tend to let my machine sleep when I’m not using it, however WOL works with both hibernate and full shutdown. If you are having trouble, its a good idea to validate that your BIOS settings are correct – as support for WOL can be enabled/disabled in the BIOS.

Unfortunately since everyone has different hardware, the details of the solution will be different.  I learned a lot of this from a thread in the ubuntu forums.  Here is my specific solution, read on past the break if you want to understand how I arrived at this solution.

I created a file /etc/init.d/wakeonlan with the following contents

#! /bin/sh
### BEGIN INIT INFO
# Provides:          wake on lan
# Required-Start:    $network
# Required-Stop:
# Default-Start:     2 3 4 5
# Default-Stop:      0 1 6
# Short-Description: Configures WOL
# Description:       Configures Wake-On-Lan
### END INIT INFO
#
ethtool -s eth0 wol g
echo enabled >  /sys/class/net/eth0/device/power/wakeup
echo SLOT > /proc/acpi/wakeup
echo KBC > /proc/acpi/wakeup

Ensuring the permissions allow execute (chmod a+x wakeonlan).  And added it to the startup sequence:

sudo update-rc.d -f wakeonlan defaults

Now every reboot you’ll get WOL setup, and the keyboard will wake up the machine too.

Continue reading “Wake On Lan”

Ubuntu 9.10

I run Ubuntu on my personal desktop at home, I started back with 6.10 (Edgy) and have simply used the upgrade distro option to drag things forward into the future.  For various reasons my partition table was sort of messed up, and I had left 42Gb of the drive to WindowsXP – so I’ve been meaning to wipe and re-install for a while.

The 1st step was to back up my existing configuration (backups are good).  Then I punted a bunch of stuff from the WindowsXP partition to let me shrink it with GParted.  I created a bootable USB key using UNetbootin (run under my previous Linux install) – very slick.

ntfs-resizeThe NTFS resize option of GParted is scary, but oh so very useful.

The installer has improved, the partitioning step is still something that may cause you to stop and scratch your head in confusion (not all bad I suppose).  The disk selection suggestion was a bit off for my setup, but I’m not exactly typical.  Installing from a USB key is very nice, I won’t be burning any more install CDs unless I’m forced to.

Post installation fun: Even with a backup, you know wiping a disk and starting over was going to be lots of forehead slapping doh moments.  The built in email client (evolution) has a backup/restore facilty – shame I didn’t think about using it prior to the move. This isn’t a big deal as all of my email lives on my IMAP server, so my only ‘loss’ is some address book entries.

It seems that 9.10 uses a newer version of grub.  I had the USB drive with my backup mounted, and it seems that the update-grub command managed to find my old kernels too? (duh, because the USB drive appears as /dev/sdc1 it is a valid boot drive to look on) Neat, but not what I wanted.  Renaming the /boot directory on the backup drive and running update-grub fixed me.

The Linux version of Chromium has been getting slowly better.  I find it is faster to start than Firefox, but less functional (for now).

Another key add-on for me is VMWare Player.  They have a pretty nice 80MB shell script “installer” (.bundle) that just works under Ubuntu 9.10 – remember to run it as root.

There are lots of other little things still missing: MythTV, Calibre, K3B, Grip, LightScribe software, and many desktop customizations.  However, for the most part with once email was configured and I had VMWare setup to run my virtualized images it was starting to feel like home.

Ideally it would be nice to have a post-new-distro script which would allow me to run and re-create my preferred environment.  I wonder how hard it would be to create one of those..

SpeedTouch 516 DSL metrics

network

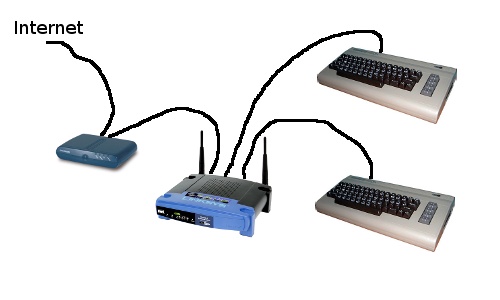

Like many folks my internet connection is connected to a router/gateway.  The router acts as the hub of my internal network providing both access to other machines on my local network as well as the internet.  In my case I have a SpeedTouch 516 DSL modem, plugged into a Linksys WRT54GL router/gateway, and an assortment of PCs plugged into the router.

If you have a single PC, then it makes sense to plug your DSL modem directly into your computer.  This has the advantage of making it easy to talk directly to your DSL modem for configuration (usually via a web interface on the modem itself).  Some modems provide various statistics about your connection.  There is also a tool called DMT which gives you a nice graphical interface to the data.

Now if your network is at all configured like mine, you can’t easily talk to the DSL modem since the router is in the way.  Assuming you are running the alternate router firmware DD-WRT, there is a solution that will expose your DSL modem to your network.

You need to gather two bits of information about your DSL modem, and the easiest manner to do this is to plug it directly into a PC via an ethernet cable.  The modem should act as a DHCP server and hand out an address to your PC.  You want to collect both the IP (cilent) address that your PC was assigned, and the gateway address (the IP of the DSL modem).

In my case I had:
client IP address 192.168.1.64
gateway IP address 192.168.1.254

Then we telnet to the DD-WRT enabled Linksys box (yup, telnet is always enabled for the local network).  You log in using user root (even if you have changed the web interface user name) and the password you use for the web interface.

We are going to temporarily modify the routers configuration with the following two commands:
/sbin/ifconfig vlan1:1 192.168.1.64 \
netmask 255.255.255.0

/usr/sbin/iptables -I POSTROUTING -t nat -o vlan1 \
-d 192.168.1.0/24 -j MASQUERADE

If you want to make this more permanent, the DD-WRT wiki has some instructions on how to do this along with a few more details as to what we’re doing in the commands above.  Assuming all went well, we can now visit the DSL modem’s web interface at http://192.168.1.254 – do this to validate that you’ve got things working ok.

Now we go grab a copy of DMT (this is a windows only program).  For the SpeedTouch 516 you want version 7.35.  By running this on a windows PC connected to your network, you should get some data out of your DSL modem in a nice graphical form.

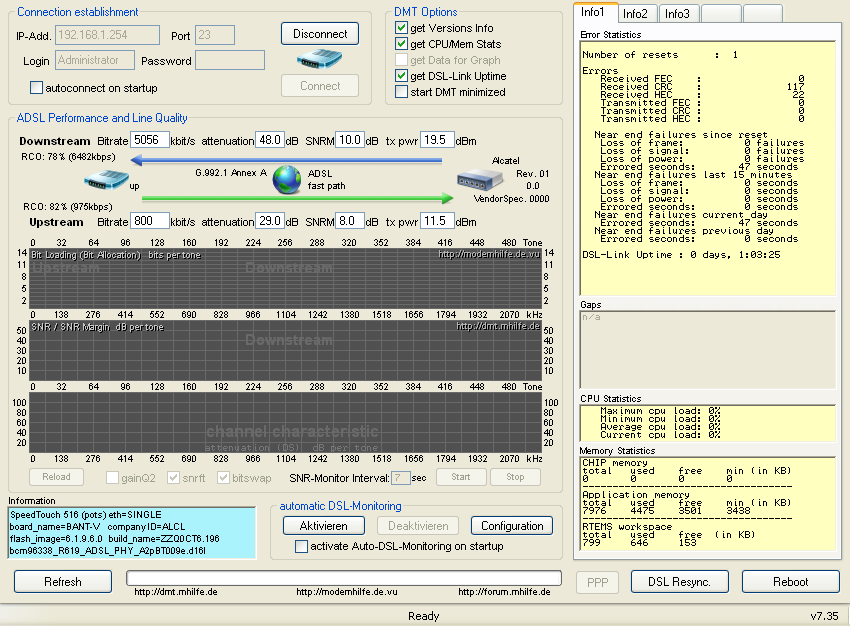

dmt20091111_2249

So neat-o, we’ve got some nice data here.  What does it mean?  A good reference can be found here – let’s look at my results using that reference.  The downstream attenuation of 48.0dB falls into the ‘good’ category, a lower value is better and much higher than 50 is not so good.  The Signal to Noise Ratio Margin (SNRM) of 10.0dB rates as fair, with this value bigger is better – a result of 6dB or less would be very bad.  The last area I’ll talk about is the upper right yellow box showing errors – ideally you want no errors, any  increase in CRC errors after your initial connection is established is a problem and usually points to a physical issue somewhere between the modem and the telephone companies equipment.

What if you don’t like Windows?  You’re in luck – all of this data can be gathered via telnet.  Simply telnet 192.168.1.254 and log into the modem:

$telnet 192.168.1.254
Trying 192.168.1.254...
Connected to 192.168.1.254.
Escape character is '^]'.
Username : Administrator
Password :

{Administrator}=>adsl info
Modemstate            :  up
Operation Mode        :  G.992.1 Annex A
Channel Mode          :  fast
Number of resets      :  1

Vendor                              Local           Remote
Country             :               0f               0f
Vendor              :             TMMB             ALCB
VendorSpecific      :             3c61             0000
StandardRevisionNr  :               00               01

Downstream        Upstream
Margin       [dB]     :             10.0              8.0
Attenuation  [dB]     :             48.0             29.0
OutputPower  [dBm]    :             19.5             11.5

Intrinsic/Actual  Bandwidth          %
Upstream            :             82
Downstream          :             78

Available Bandwidth                 Cells/s           Kbit/s
Downstream          :            11924             5056
Upstream            :             1886              800

Transfer statistics
Errors
Received FEC    :                0
Received CRC    :              117
Received HEC    :               22
Transmitted FEC :                0
Transmitted CRC :                0
Transmitted HEC :                0

Near end failures since reset
Loss of frame:          0 failures
Loss of signal:         0 failures
Loss of power:          0 failures
Errored seconds:       47 seconds
Near end failures last 15 minutes
Loss of frame:          0 seconds
Loss of signal:         0 seconds
Loss of power:          0 seconds
Errored seconds:        0 seconds
Near end failures current day
Errored seconds:       47 seconds
Near end failures previous day
Errored seconds:        0 seconds
{Administrator}=>

So in my case, I’ve got CRC errors happening at a low rate indicating there is possibly some physical problem (ie: wiring).  This is probably what led to a rash of recent DSL disconnect problems that prompted me to investigate this far in terms of self diagnosing the problem (because who wants to sit on hold with your ISP all day?).

So this is what the phone line connected to my DSL modem looks like:

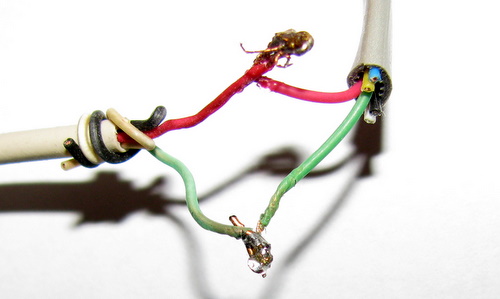

img_3076Look suspicious?  Ok, so I’ve been meaning to fix that for a while.

I also started searching on potential firmware upgrades, and came across some data that indicates that my current 6.1.9.6.0 revision may not be all that stable.  I’ll have to tinker with that soon too.

I need to share one more goof with you.  Jenn told me today that her email wasn’t working.  I looked on the server and all appeared to be well, and it turns out it was her Mac acting up – it couldn’t see the mail server anymore.  I checked with nslookup and the name was resolving fine, but ping to the same machine failed to map the name.  Strange, I thought it was specific to the Mac until I later tried my linux box and it failed too… Huh?  Turns out that I had reboot my router last night to clear some of the settings, since the router acts as my local DNS server/cache it had forgotten the email servers IP address.  Renewing the IP address on the email server cause the DNS entry on the router to refresh and all was well again.  The lesson?  Remember your network topology.
